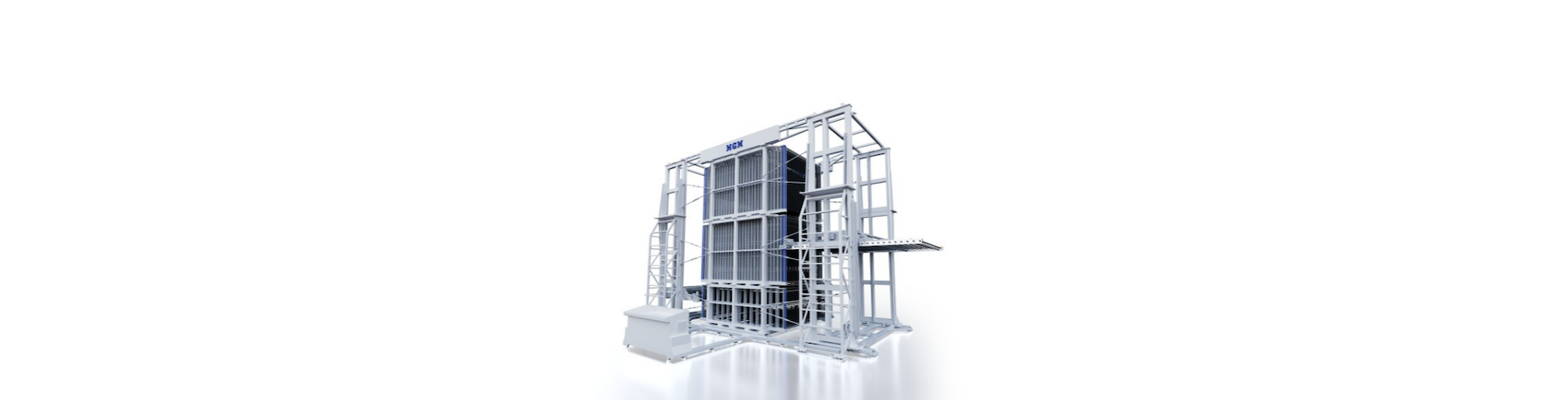

Horizontal MES Warehousing and Panel Handling System

Home >Warehousing System

Product Introduction

Technical Data
Max Glass Size 3600*2500mm(length*width)
Min Glass Size 300*180mm(length*width)
Max Glass Thickness ≤10mm
Equipment Specifications 11700*6200*6800mm(length*width*height)
Floor Distance 40mm/60mm
Power Supply ≈33kW
Transport Speed 1-25m/min
Elevator Speed 1-60m/min

Performance

? Minimal horizontal floor space with optimized vertical storage utilization

? Ultra-high resilience support pads prevent glass warping during extended storage

? Flexible rubber contact surfaces, reducing spontaneous breakage rate

? Rapid horizontal transfer and vertical lifting

? Computerized glass tracking, automated glass retrieval based on predefined matching rules with MES integration

? Servo-driven lift cart with high positioning accuracy

? Multiple sheets stored per tier

? HMI displays tier-specific glass specifications and associated order data

? Automatic roller cleaning function for each storage layer
